Description

The best balance between spray coverage and drift control.

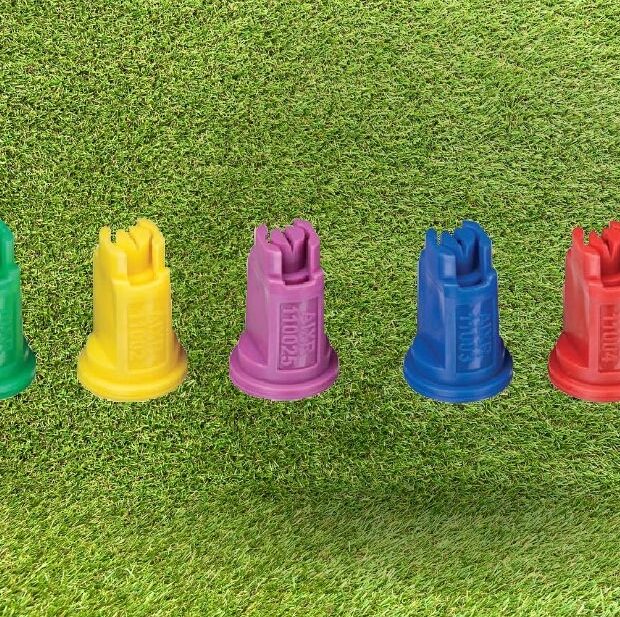

The AIXR TeeJet^® flat spray tip offers the benefit of obtaining excellent drift resistance without compromising spray coverage. This nozzle produces a wide range of droplet sizes suitable for all types of applications. AIXR is one of the more versatile spray tips on the market.

FEATURES

• Tapered edge flat spray angle pattern with air induction technology offers better drift management.
• Produces large air-filled droplets through a Venturi air aspirator.
• Unique UHMWPE polymer material used on the AIXR-VP adds improved wear life and better acid resistance.
• The AIXR-VK polypropylene body provides excellent acid resistance, and the ceramic pre- and exit orifice offers improved wear life.
• Compact size to prevent tip damage.
• Removable pre-orifice.
• Available in nine VisiFlo^® Polymer (VP) and seven VisiFlo ceramic (VK) capacities.
• Automatic spray alignment with Quick TeeJet^® cap and gasket 114441A-*-CELR (015 to 06) or 114443A-*-CELR (08 and 10).

BENEFITS

• The most versatile air induction nozzle on the market.
• Low drift potential (Up to 90% drift reduction*)
• Optimum operating pressure: 45 – 60 PSI (3 – 4 Bar)
• Compact design with removable pre-orifice for easy cleaning.
• Adapted for vineyard applications.
• The AIXR is built with an UHWMPE** material offering high chemical resistance.

* Only for AIXR-VP
** Ultra High Molecular Weight Polyethylene

APPLICATIONS

Systemic Applications	Contact Insecticides	Pre-emergence Applications

AIXR11002-VP at 120 L/ha, 3 Bar, 8 km/h

Water temperature 20°C

AIXR 110° VP Polymer

Nozzle Filter: AIXR110015 = Filter 100 Mesh | AIXR11002 and other capacities = Filter 50 Mesh    ISO Standard Colour coding for tip capacity
